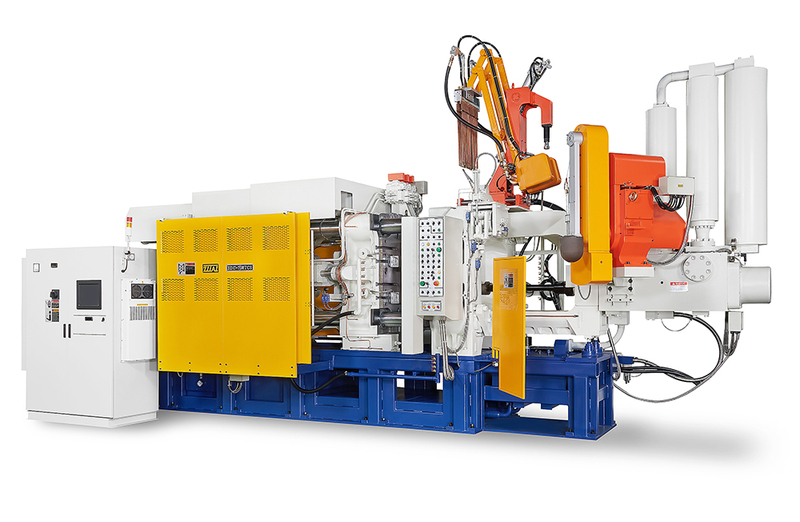

ZDC-730TCS Cold Chamber Die Casting Machine
730-Ton High-Precision, High-Efficiency Equipment for Medium-to-Large Aluminum Castings
ZITAI ZDC-730TPS with 730-ton clamping force, designed for medium-to-large aluminum structural castings. Widely used in automotive, home appliance, and telecom applications.
Features
The ZITAI ZDC-730TCS is an ideal solution for producing medium-to-large aluminum castings. Its key strengths lie in its stable 730-ton clamping force and excellent operating performance.
With a mold thickness range of 350–900 mm, tie-bar spacing of 850 × 850 mm, and a max. shot weight of approx. 8.2 kgf, the ZDC-730TCS ensures high precision and stable performance throughout the die casting process.
- Wide Application Range:
Suitable for a wide range of medium-to-large aluminum castings, including automotive transmission components, structural parts for large home appliances, LED heat sinks, and telecom product housings. - Optimized Production Efficiency:
Equipped with a high-stability injection system and optimized pressure control technology to improve casting consistency and yield. Max. injection speed reaches 6.0 m/s for fast and precise forming. - Cost Efficiency with Quality:
Incorporating TCS technology and an energy-saving design, the ZDC-730TCS helps reduce operating costs and improve manufacturing efficiency while meeting strict quality requirements for mid-to-high-end castings.
Specifications
| Main Item | Unit | ZDC-730TCS | ||||
| Locking Unit | Locking force | ton | 730 | |||
| Die platen dimension | mm | 1220 x 1220 | ||||
| Tie bar distance | mm | 850 x 850 | ||||
| Die height distance | mm | 350 ~ 900 | ||||
| Die stroke | mm | 700 | ||||
| Tie bar diameter | mm | Ø170 | ||||
| Die adjustment speed | mm/min | 80 (50HZ) | ||||
| 97 (60HZ) | ||||||
| Ejecting unit | Ejecting force | ton | 32.3 | |||
| Ejecting stroke | mm | 150 | ||||
| Core unit | Electromagnetic valve | PT | 3/4" x 2(sets) | |||
| Outlet of oil | PT | 3/4" x 6(sets) | ||||
| Electric system | Motor capacity voltage(Pump) | KW | Induction motor 37.5 | Servo motor 50 | ||
| Motor capacity voltage(Die adj) | 2.25 | |||||
| Power source | V | 220/380/415 (50/60HZ) | ||||
| Capacity | KVA | 62 | 65 | |||
| Shot unit | Shot position | MM | Standard positions: -175 | |||
| Multiple positions: -40, -140, -175, -275 | ||||||
| Shot force | ton | 38~56 | ||||
| Max. shot speed(*) | M/Sec | 6.0 (*8.0) | ||||
| Plunger stroke | mm | 670 | ||||
| Plunger tip penetration | mm | 300 | ||||
| Plunger tip diameter | mm | Min Ø70 |
Med | Max Ø100 |
||
| Ø80 | Ø90 | |||||
| Casting Pressure | Kgf/cm² | 1193~1455 | 914~1114 | 722~880 | 585~713 | |
| Casting area | cm² | 611~501 | 798~655 | 1010~829 | 1248~1023 | |
| Net shot weight | Kgf | 4 | 5.3 | 6.7 | 8.2 | |
| Cooling water system | Cooling water inlet pipe diameter | PT | 1-1/2" | |||
| Die cooling water outlet pipe diameter (in & out) |
PT | 1-1/4" x 1 (inlet) | ||||
| 2-1/2" x 1 (outlet) | ||||||
| Number of die cooling | PC | 10(inlet) | ||||
| Water adjusting valve cooling water | 10(outlet) | |||||
| Die cooling water | Ltr/min | 70~120 | ||||
| Hydraulic system | Die & ejecting pressure | Kgf/cm² | 120 | |||
| Max. Intensified pressure oil injection | Kgf/cm² | 260~317 | ||||
| Cycling oil volume | Ltr | 920 | ||||
| Cooling water | Ltr/min | 70~80 (25°C) | ||||
| Machine relation | Machine size (LxWxH) | mm | 9000x2700x3600 | |||
| Machine weight | ton | 32 | ||||
