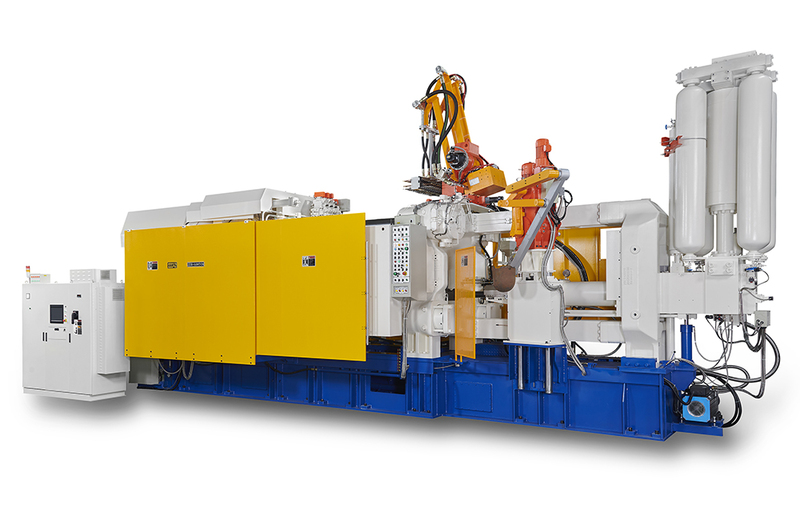

ZDC-1400TCM Cold Chamber Die Casting Machine
1400-Ton High-Precision Aluminum Casting Equipment for Large Components
Features
The ZITAI ZDC-1400TCM is a new-generation 1400-ton cold chamber die casting machine developed for large aluminum castings and high-precision structural components. It delivers stable, efficient, and energy-saving performance, making it suitable for automotive structures, EV components, and heavy industrial applications.
The machine features a high-rigidity 1400-ton clamping system with a platen size of 1800 × 1800 mm, tie-bar spacing of 1150 × 1150 mm, and a mold thickness range of 500–1400 mm, enabling flexible adaptation to large and deep-cavity molds.
In terms of injection performance, it provides an injection force of 75–110 tons and a maximum injection speed of 4.5 m/s (expandable to 6.0 m/s), with a maximum shot weight of approx. 24 kgf. An intensification pressure of 263–342 kgf/cm² enhances filling efficiency and reduces porosity.
The machine is equipped with a 60.5 kW high-efficiency servo hydraulic system, combining energy savings with stable operation. A modular design and 15 sets of mold cooling circuits ensure consistent quality and high productivity during long-term operation.
The ZDC-1400TCM combines high precision, stability, and productivity, making it an ideal solution for large-scale aluminum die casting processes.
Specifications
| Main Item | Unit | ZDC-1400TCM | ||||
| Locking Unit | Locking force | ton | 1400 | |||
| Die platen dimension | mm | 1800 x 1800 | ||||
| Tie bar distance | mm | 1150 x 1150 | ||||
| Die height distance | mm | 500 ~ 1400 | ||||
| Die stroke | mm | 1100 | ||||
| Tie bar diameter | mm | Ø230 | ||||
| Die adjustment speed | mm/min | 66 (50HZ) | ||||
| 79 (60HZ) | ||||||
| Ejecting unit | Ejecting force | ton | 52.3 | |||
| Ejecting stroke | mm | 0~240 | ||||
| Core unit | Electromagnetic valve | PT | 3/4" x 6(sets) | |||
| Oil outlet | PT | 3/4" x 12(sets) | ||||
| Electric system | Motor capacity voltage (Pump) | KW | Pump 60.5 | |||
| Motor capacity voltage (Die adj) | KW | 5.625 | ||||
| Power source | V | 220/380/415 (50/60HZ) | ||||
| Capacity of power source | KVA | 134 | ||||
| Shot unit | Shot position | MM | -40,-285,-350 | |||
| Shot force | ton | 75~110 | ||||
| Max. shot speed(*) | M/Sec | 4.5(*6.0) | ||||
| Plunger stroke | mm | 1000 | ||||
| Plunger tip penetration | mm | 465 | ||||
| Plunger tip diameter | mm | Min Ø110 |
Med | Max Ø140 |
||
| Ø120 | Ø130 | |||||
| Casting Pressure | Kgf/cm2 | 789~1157 | 663~972 | 565~828 | 487~714 | |
| Casting area | cm2 | 1773~1209 | 2111~1439 | 2477~1689 | 2873~1959 | |
| Net shot weight | Kgf | 14.8 | 17.6 | 20.7 | 24 | |
| Cooling water system | Cooling water inlet pipe diameter | PT | 2" | |||
| Die cooling water pipe (in & out) | PT | 1-1/4" x 1 (inlet) | ||||
| 2-1/2" x 1 (outlet) | ||||||
| Number of die
cooling water adjusting valve cooling water |
PC | 15 (inlet) | ||||
| 15 (outlet) | ||||||
| Die cooling water | Ltr/min | 100~150 | ||||
| Hydraulic system | Die & ejecting pressure | Kgf/cm2 | 180;180 | |||
| Max. Intensified pressure | Kgf/cm2 | 270~382 | ||||
| Cycling oil volume | Ltr | 4000 | ||||
| Cooling water | Ltr/min | 150 (Water temp 25°C) | ||||
| Machine relation | Machine size (LxWxH) | mm | 12000x4680x6190 | |||
| Machine weight | ton | 120 | ||||
